Electronic fuse (CB23643E)

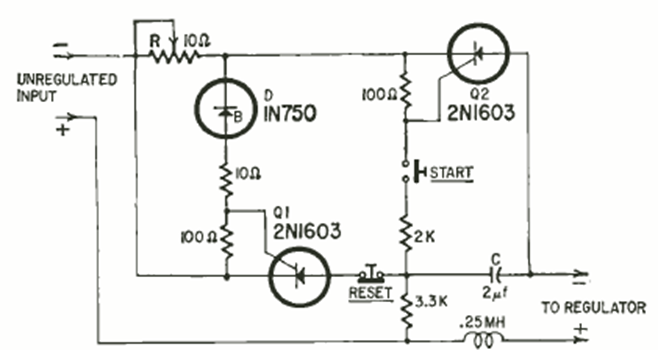

This circuit switches off a load in case of excess current acting as a fuse. The circuit is from a Radio Electronics from January 1965.

| Clique na imagem para ampliar |
