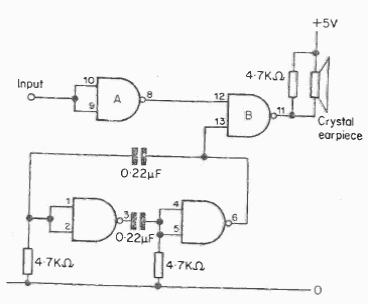

Switched Oscillator 7400 (CB22426E)

This circuit provides an audible signal in a crystal transducer. The circuit is controlled by an input TTL signal. It must be powered by 5V.
