Rhythmic Lights (CB23933E)

Details
Written by: Newton C. Braga

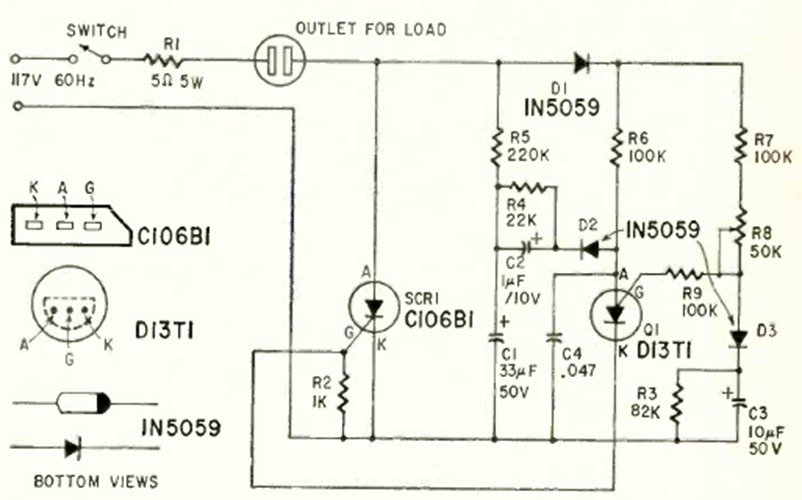

This unijunction programmable transistor circuit was found in the December 1968 issue of Radio Electronics magazine. The circuit is a half-wave control for incandescent lamps only.




| Clique na imagem para ampliar |
