Simple voltmeter (CB23621E)
- Details
- Written by: Newton C. Braga

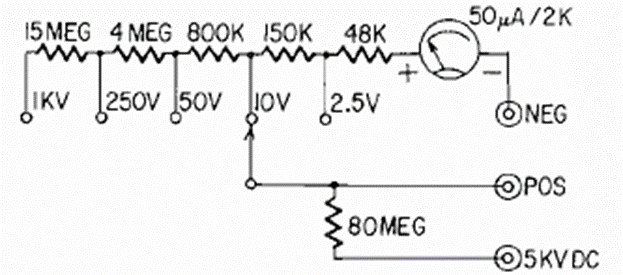

In the figure we have the circuit of a simple voltmeter with a 50 uA instrument and a 2k coil. The circuit includes a high voltage scale. Track selection is done by key.
