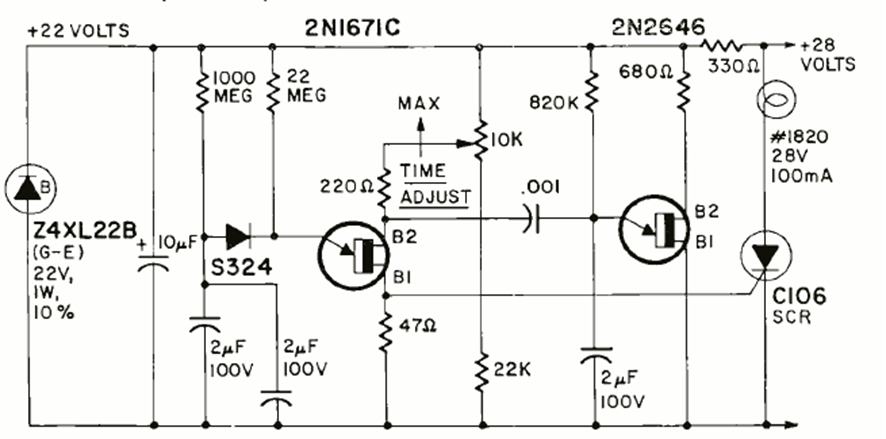

This circuit turns on a lamp after the time set on the potentiometer. The circuit is from a Radio Electronics from August 1969. The time depends on the 2 uF capacitors which, for greater precision, are not electrolytic.
