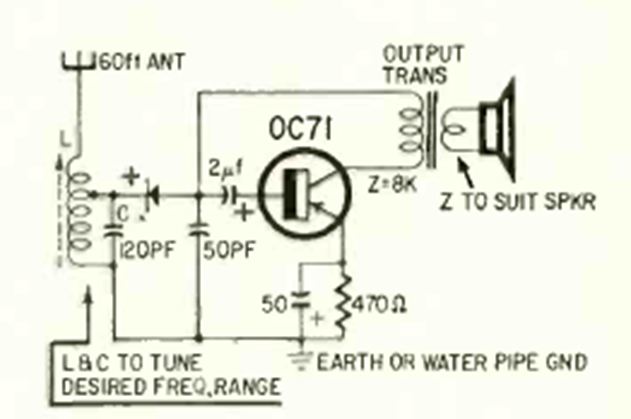

We found this circuit in a Radio Electronics from February 1966. The circuit uses a germanium transistor that is polarized by the captured signal itself. The antenna must be very long to obtain sufficient energy for operation.
Powerless Radio (CB23700E)
- Details
- Written by: Newton C. Braga
