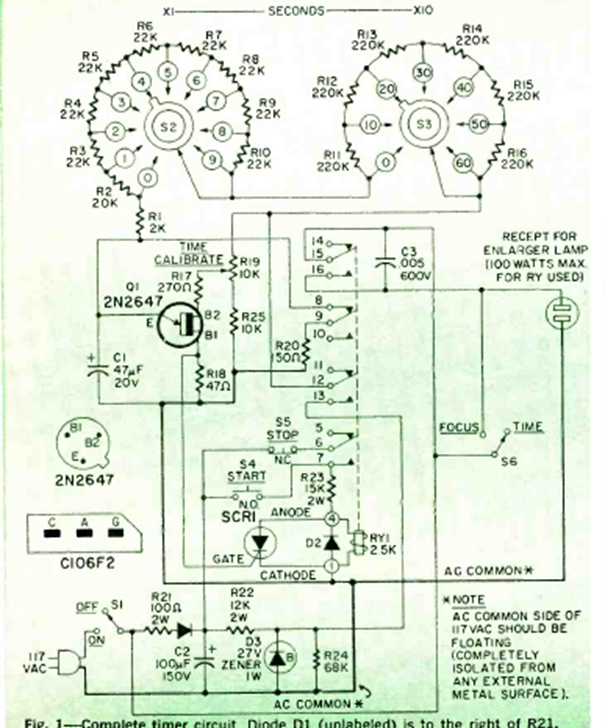

This circuit was originally described for use in photographic enlargers. The circuit is from a Radio Electronics magazine from December 1969. The resistor networks can be replaced by potentiometers.
Timer for photography (CB23989E)
- Details
- Written by: Newton C. Braga
