Gain control (CB22445E)

Details: Written by: Newton C. Braga

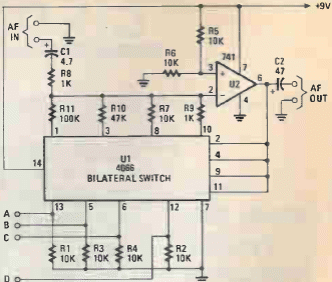

We found this digital gain control circuit for audio signals in a Popular Electronics from 1992. The circuit has the gain determined by the resistors in the operational inverting input.
