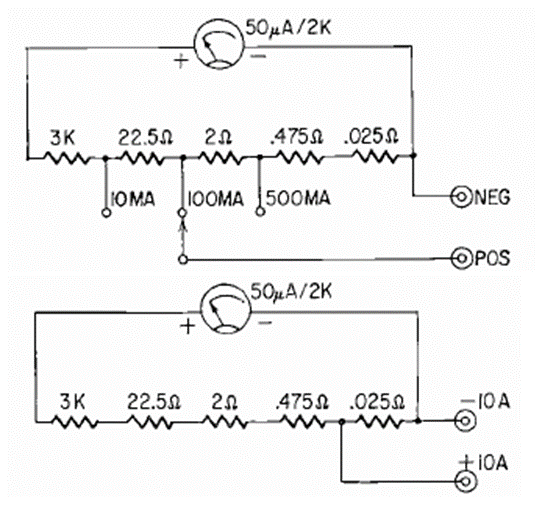

This is the basic circuit of a milliammeter with a 50 uA instrument and 2k coil resistance. Calculations can be made for instruments with other characteristics. The second circuit includes 10th contact without passing through the switch, for greater safety.
