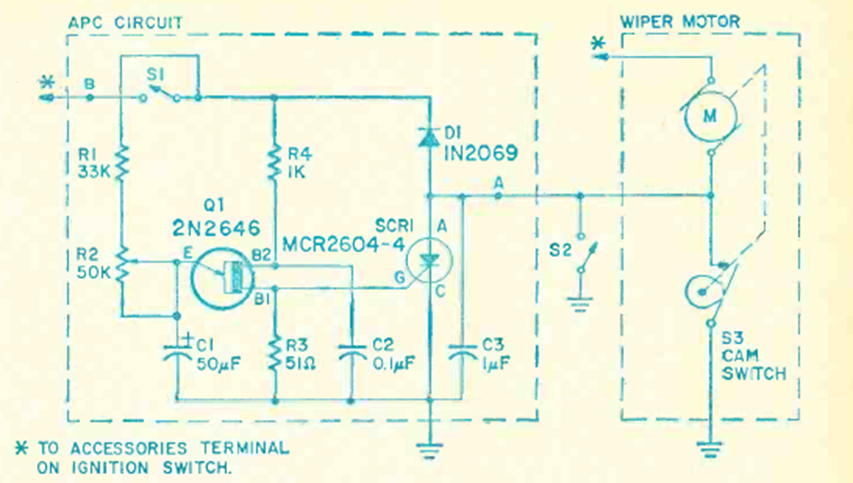

This simple circuit with SCR and unijunction transistor appeared in Radio Electronics magazine in July 1968. The time adjustment depends on C1 and potentiometer R2. The circuit is suitable for cars of the time that did not have this feature.
