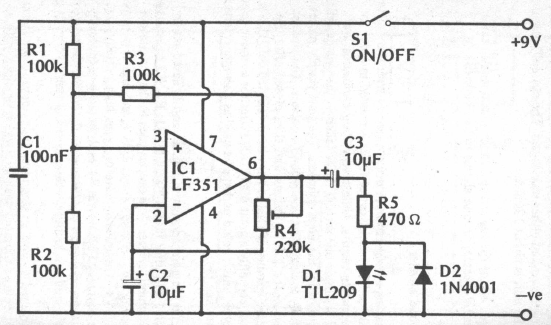

Found in 1980s documentation, this circuit produces 1 Hz flashes. The op amp supports equivalent. R5 depends on the power of the LEDs and the supply voltage.
1 second flash (CB22199E)
- Details
- Written by: Newton C. Braga
Found in 1980s documentation, this circuit produces 1 Hz flashes. The op amp supports equivalent. R5 depends on the power of the LEDs and the supply voltage.
