Start for model car (CB22207E)

Details
Written by: Newton C. Braga

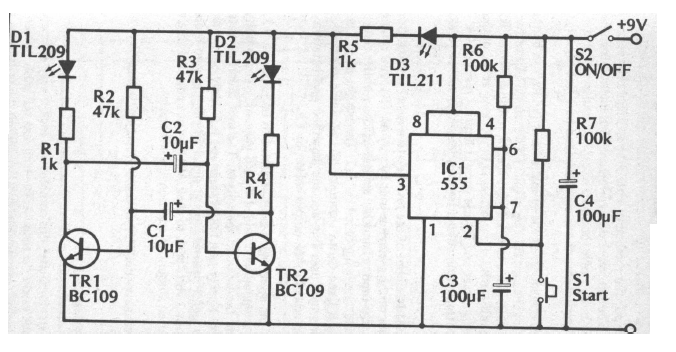

This circuit of starting lights for auto-race was found in an English documentation from the 80's. The LEDs must be of different colors, for greater realism.




| Clique na imagem para ampliar |
