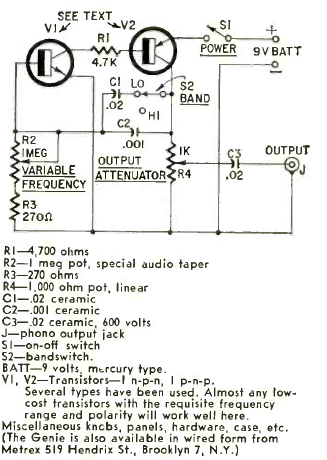

This audio oscillator operates like a signal injector in a frequency given by C1. The circuit was published in the Radio Electronics magazine from may 1962. Power comes from a 9 V battery.
Signal Injector (CB23819E)
- Details
- Written by: Newton C. Braga
