VLF Transmitter (CB22461E)

Details
Written by: Newton C. Braga

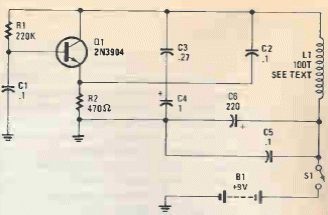

We found this transmitter in a Popular Electronics from 1992. The circuit transmits in the range of approximately 7 kHz, depending on the L1 coil. The transistor can be power type like the TIP31.
