SCR full wave control (CB23573E)

Details
Written by: Newton C. Braga

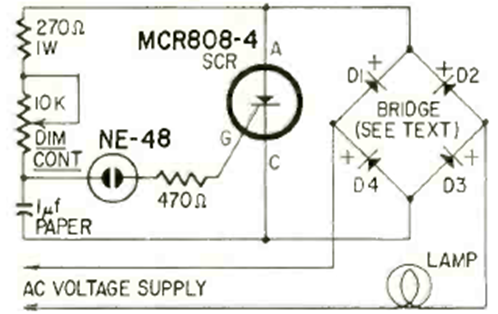

This circuit is from a Radio Electronics from June 1964. The bridge diodes must be in accordance with the power of the lamp that is controlled. The SCR must be equipped with a heat sink.
