Transistor Oscillator (CB23627S)

Details
Written by: Newton C. Braga

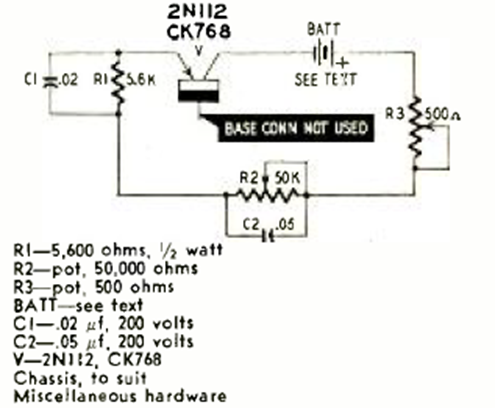

This oscillator takes advantage of the inverse breakdown voltage between collector and emitter. The circuit that must be powered with 22.5 V was published in Radio Electronics magazine in August 1959.
