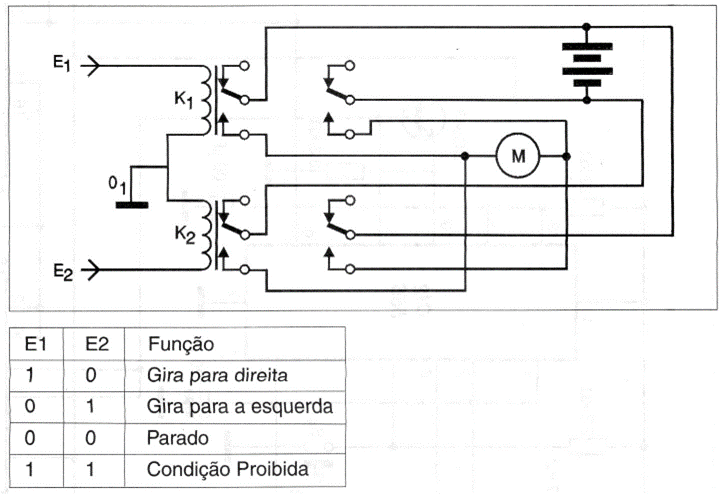

A little more complex than the previous one, and can now be called a shield, this circuit can be used to control the movement of a robot, acting on the motor. Two motors must be used in similar controls, with two control logic inputs. The circuit can be easily adapted to operate as a microcontroller shield using sensitive 5 V relays.
