Assisted ignition (CB23734E)

Details
Written by: Newton C. Braga

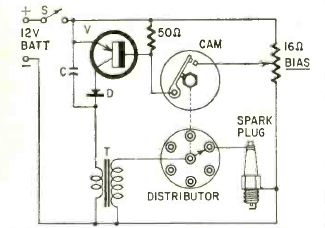

This is a circuit published in the patent section of the April 1961 Radio Electronics magazine. The power transistor can be any high current type.
