High voltage generator (CB23745E)

Details
Written by: Newton C. Braga

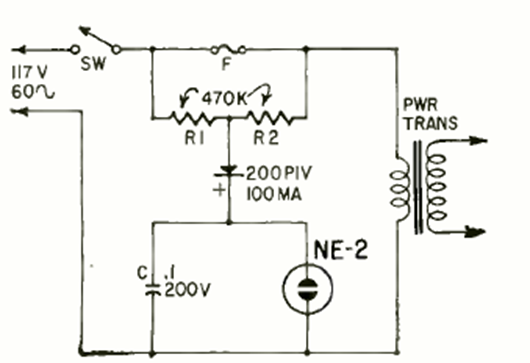

We found this circuit in a Radio Electronics from May 1966. Its purpose is to generate pulses according to a transformer and at a frequency basically given by C.
