Sensitive electronic relay (CB23762E)

Details
Written by: Newton C. Braga

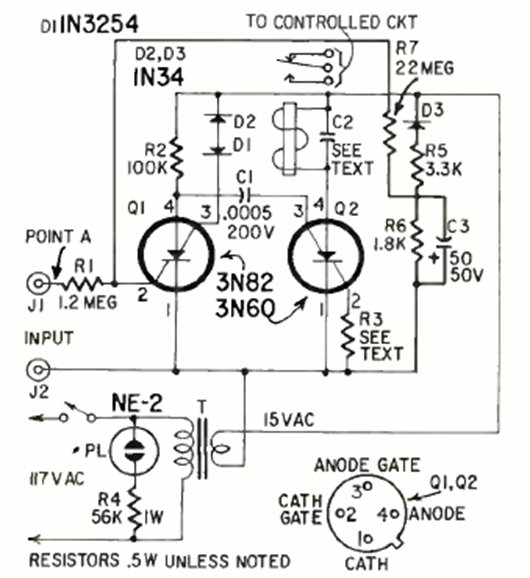

We found this circuit in Radio Electronics magazine from October 1966. The circuit uses a 15 V relay according to the transformer and has two SCRs in a bistable configuration.
