Dip Meter with Tunnel Diode (CB23881E)

Details
Written by: Newton C. Braga

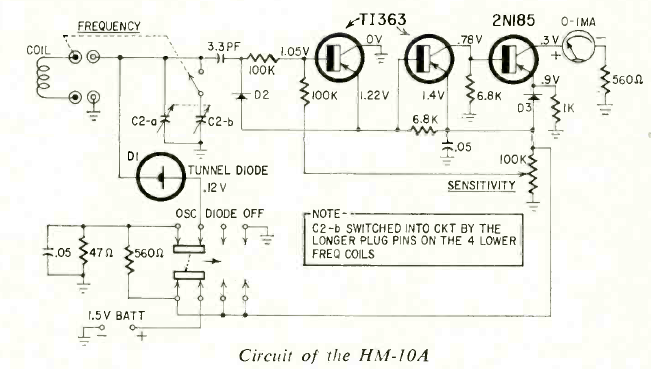

This is the circuit for the HM-10ª, an instrument sold by Heathkit. The circuit is from a Radio Electronics from May 1963. The indication is by an analog instrument.




| Clique na imagem para ampliar |
