Crystal shortwave radio (CB22165E)

Details
Written by: Newton C. Braga

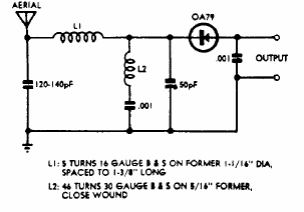

This crystal shortwave radio can tune signals up to the VHF range of analog TV (which no longer operates). The headphone can be crystal, or the output applied to an external amplifier. The circuit is from a documentation from the 70s.
