Stethoscope CIR21016S (CB22490E)

Details
Written by: Newton C. Braga

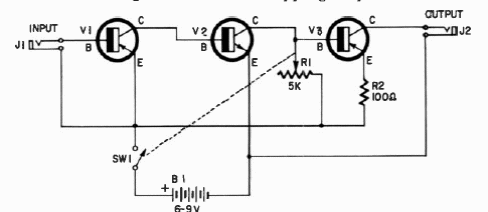

With the name of detectaphone, we find this circuit in a documentation from 1966. It will be convenient to couple the input audio signal through a 100 nF capacitor. The transistors are 2N107 and 2N170.
