Circuit protector (CB22523E)

Details
Written by: Newton C. Braga

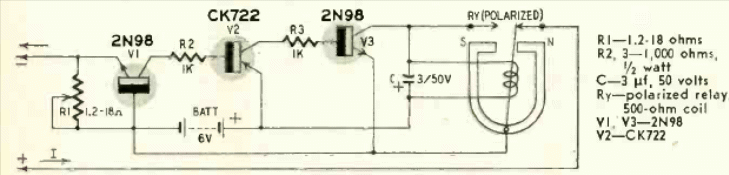

This current switch was found in a Radio Electronics from November 1957. It triggers the current determined by the electromechanical sensor, a polarized relay of the time.
