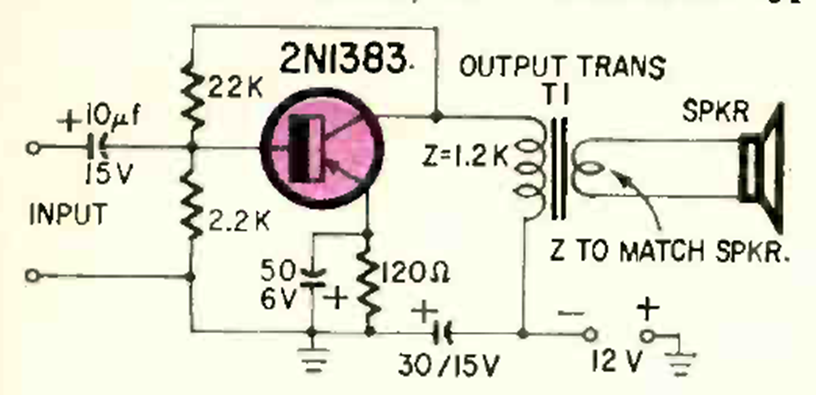

This circuit is from an October 1963 Radio Electroncs. It uses a single 2N18383 transistor and a transformer. The circuit has a distortion of the order of 4 to 6% and is powered by 12 V. The transistor is a type of power at the time.
| Clique na imagem para ampliar |
