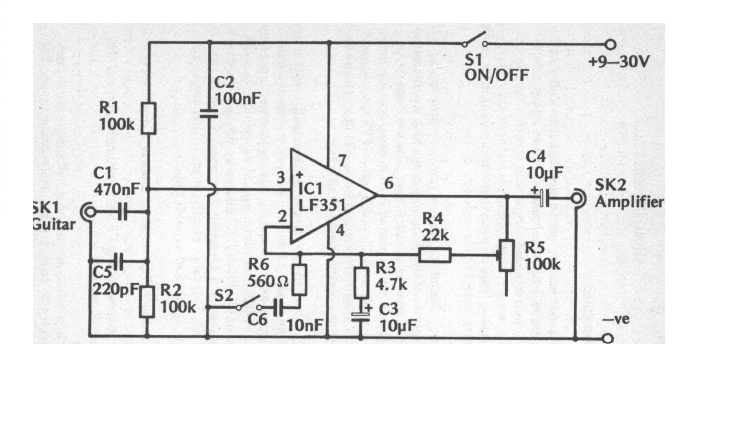

Guitar preamp (CB22146E)

Found in an English publication from 1989, this circuit uses a still common operational amplifier. The power supply does not have to be symmetrical.

| Clique na imagem para ampliar |
