Photoelectric Relay (CB23541E)

Details
Written by: Newton C. Braga

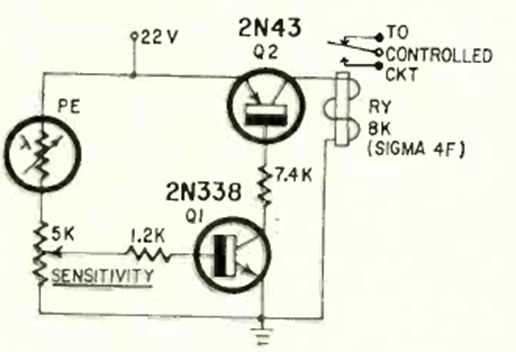

This circuit is from a Radio Electronics from October 1963. The LDR and transistors are from the time, but the circuit can be assembled with modern equivalent components. The supply voltage depends on the relay used.
