Light control 2 (CB22124E)

Details
Written by: Newton C. Braga

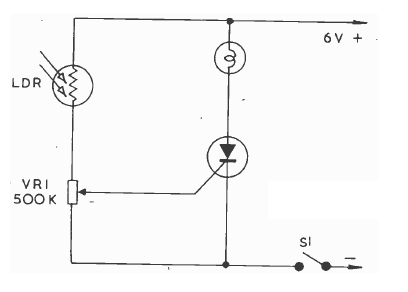

This circuit has an action opposed to the previous one, being activated when the light falls on the sensor. You can shoot with a flashlight. The SCR can be any 106-family member.
