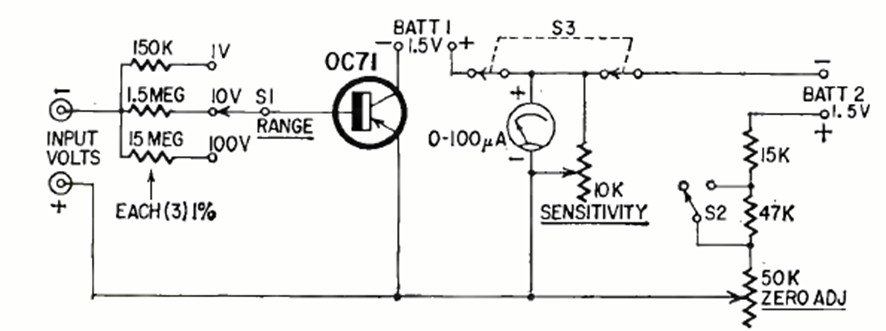

This circuit can be considered as a high input resistance voltmeter. It was found in a Radio Electronics from May 1964. The transistor is from the time, but modern equivalents can be used. The gain is approximately 40 times.
