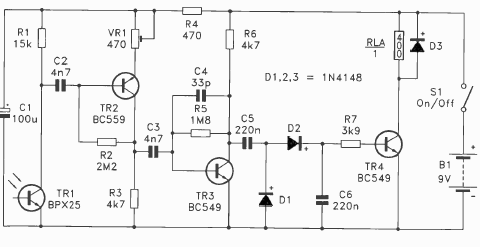

This circuit is the receiver for the previous remote-control transmitter. We found it in the same documentation from 1995. The sensor can be any sensitive phototransistor.
Remote control receiver (CB22360E)
- Details
- Written by: Newton C. Braga
This circuit is the receiver for the previous remote-control transmitter. We found it in the same documentation from 1995. The sensor can be any sensitive phototransistor.
