3-transistor amplifier (CB23537E)

Details
Written by: Newton C. Braga

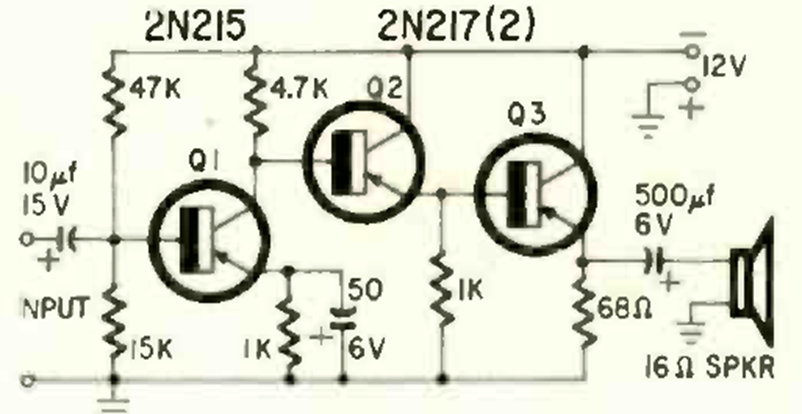

This transformerless 16-ohm speaker circuit was found in a Radio Electronics from October 1963. The circuit is powered by 12 V and the gain is 50 dB.




| Clique na imagem para ampliar |
