Control for model railways (CB23656E)

Details
Written by: Newton C. Braga

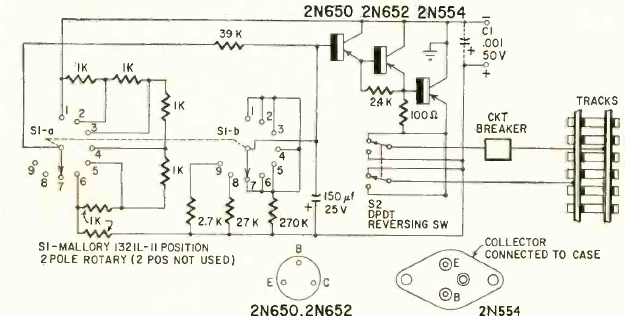

This model circuit was found in Radio Electronics magazine from February 1960. The power transistor must be equipped with a heat radiator. Control is done by selector switch.
