Audio Booster (CB23695E)

Details
Written by: Newton C. Braga

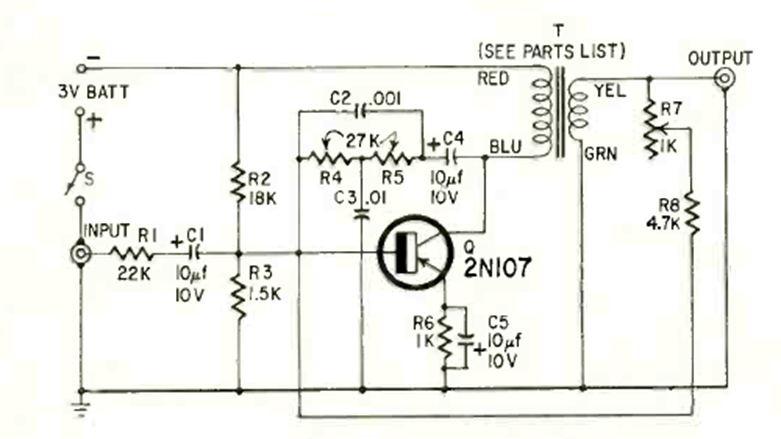

The idea of ​​this circuit found in a Radio Electronics from January 1966. The idea of ​​the circuit is to improve the reception of audio signals, mainly telegraphy, working as a filter.
