Bistable with SCR (CB23946E)
- Details
- Written by: Newton C. Braga

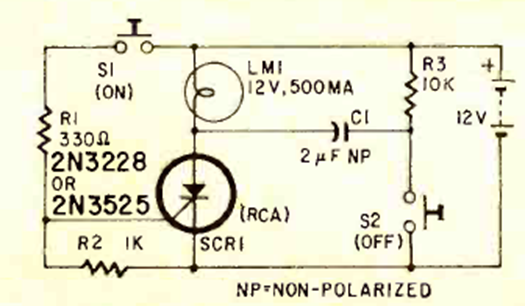

This circuit was found in the June 1969 Radio Electronics magazine. Unlike the previous one, the shutdown is done by shorting the SCR through a capacitor.
