Sensitive light relay (CB22103E)
- Details
- Written by: Newton C. Braga

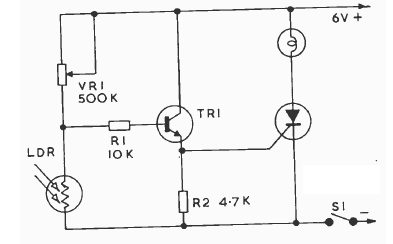

This circuit was obtained from old documentation, triggering when there is a power cut on the sensor. Sensitivity adjustment is done in VR1, and the transistor can be BC548.
