Single Pulse Trigger (CB23925E)

Details
Written by: Newton C. Braga

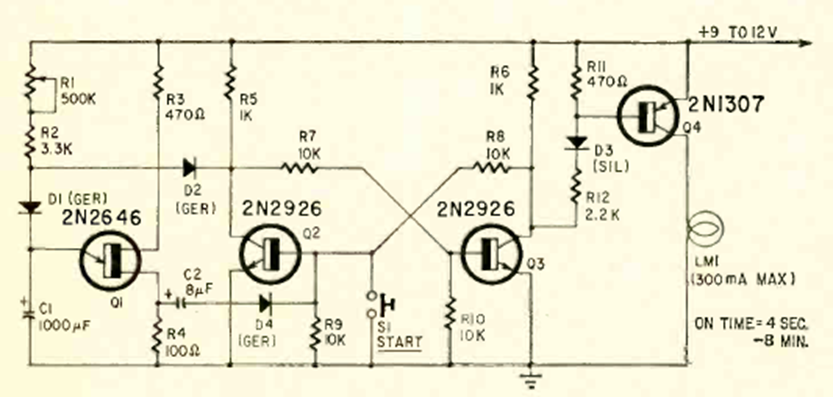

Using the 2N2646 this circuit was found in a Radio Electronics magazine from July 1968. The transistors are from the time and the lamp can be replaced by a high-power LED in a current version.






| Clique na imagem para ampliar |
