1976 Digital Clock (CB24418E)

Details
Written by: Newton C. Braga

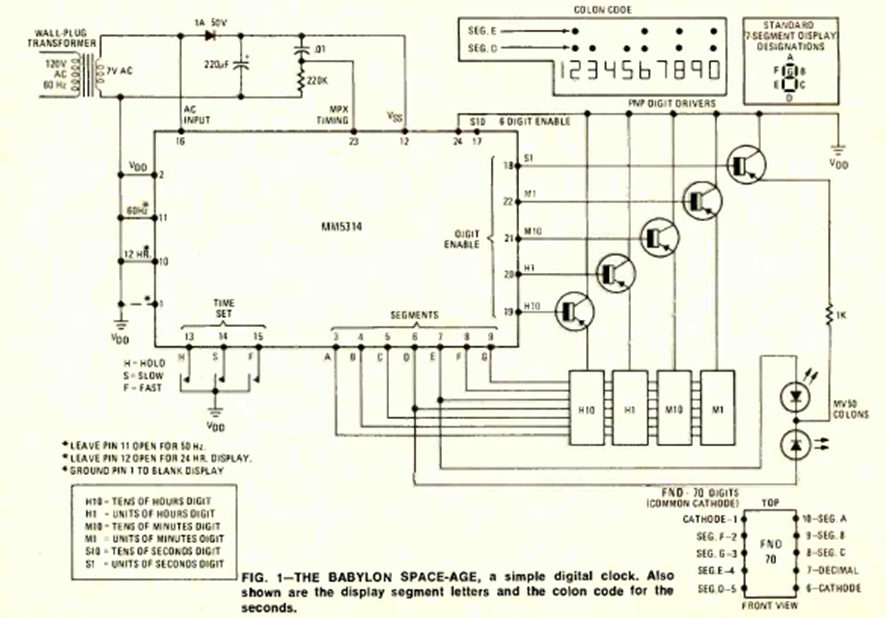

This commercial clock circuit was found in the August 1976 issue of Radio Electronics magazine. The circuit uses a period module and includes power from a special transformer.
