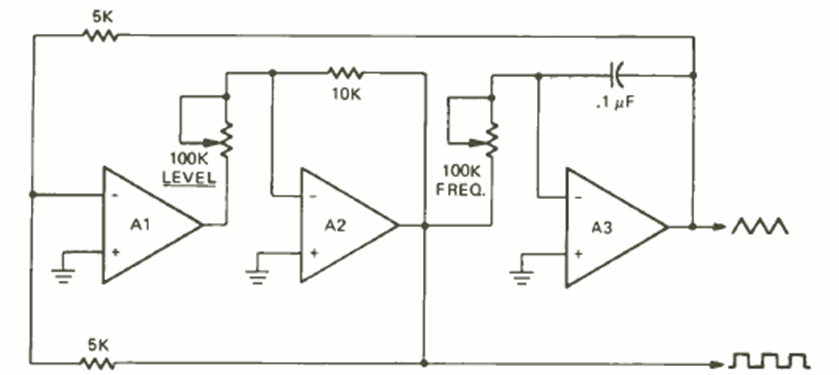

Found in the June 1972 issue of Radio Electronics magazine, this circuit generates signals that are tuned and can reach 20 kHz. The operational amplifiers are general-purpose types such as the 741.
| Clique na imagem para ampliar |
Square and triangular generator (CB24196E)
- Details
- Written by: Newton C. Braga
