Differential Oscillator (CB24314E)

Details
Written by: Newton C. Braga

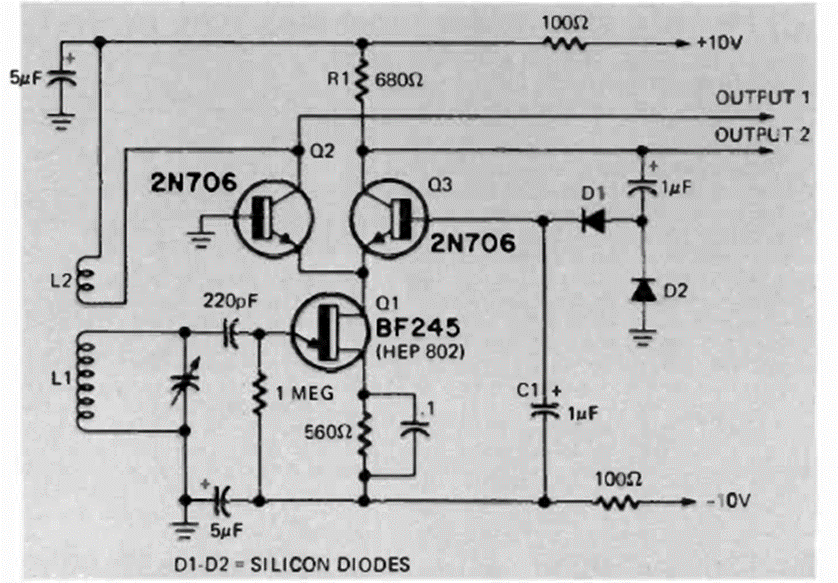

This circuit with a differential pair was found in the August 1974 Radio Electronics magazine. The frequency is determined by L1 and the variable capacitor.
