Leakage Test for Capacitors (CB24958E)

Details
Written by: Newton C. Braga

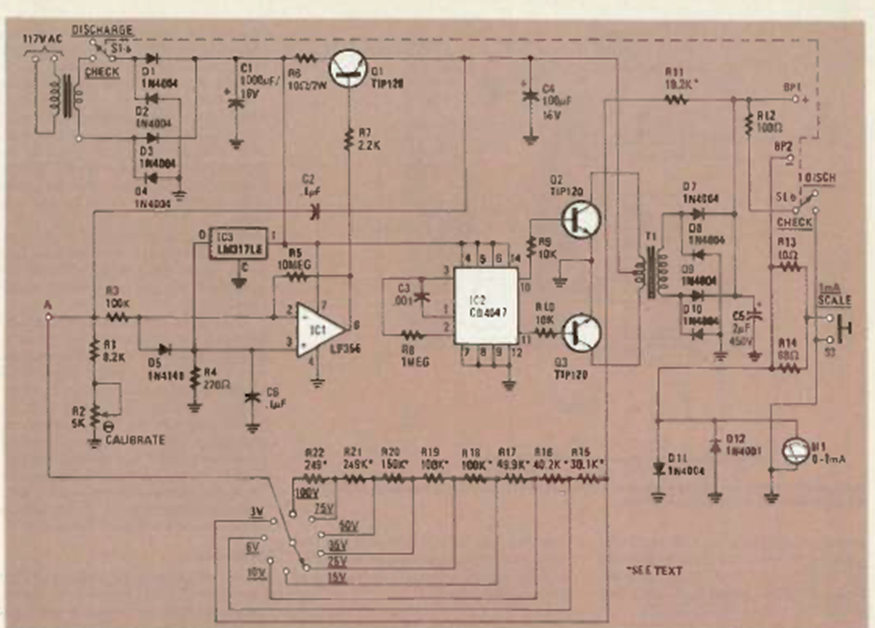

This circuit is from a Radio Electronics magazine from May 1986. Observe the voltages applied to the capacitors, taking care that the capacitor under test can withstand them.
