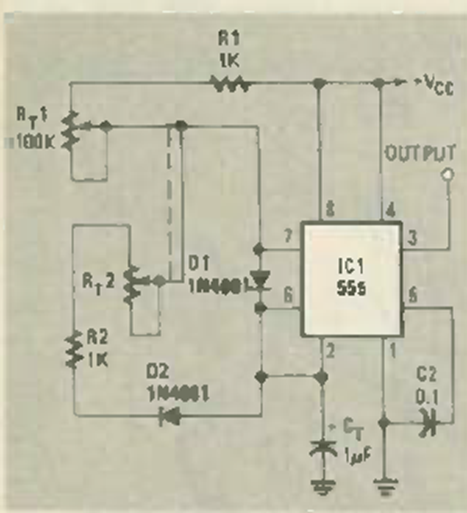

With this circuit it is possible to vary the frequency of a 555 while keeping the duty cycle constant. The circuit is from a Radio Electronics magazine from July 1985.
Constant Duty Cycle 555 (CB24929E)
- Details
- Written by: Newton C. Braga
With this circuit it is possible to vary the frequency of a 555 while keeping the duty cycle constant. The circuit is from a Radio Electronics magazine from July 1985.
