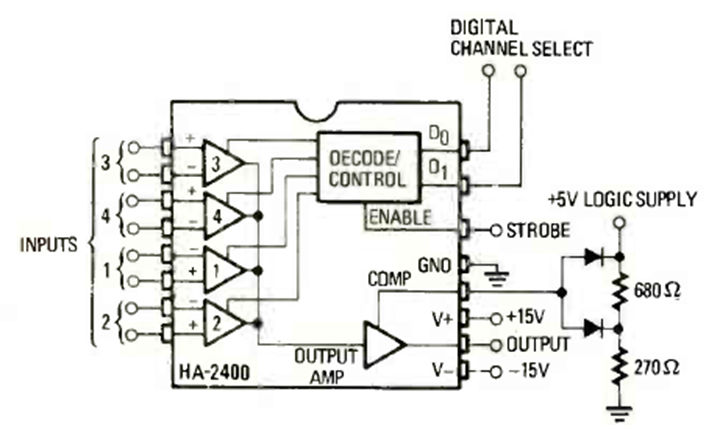

The basis of this circuit is the HA2400 released at the time. The circuit is from a Radio Electronics magazine from March 1980. The power supply must be symmetrical at 15 V.
| Clique na imagem para ampliar |
4-Channel Comparator (CB24632E)
- Details
- Written by: Newton C. Braga
