Microlights (CB25786E)

Details
Written by: Newton C. Braga

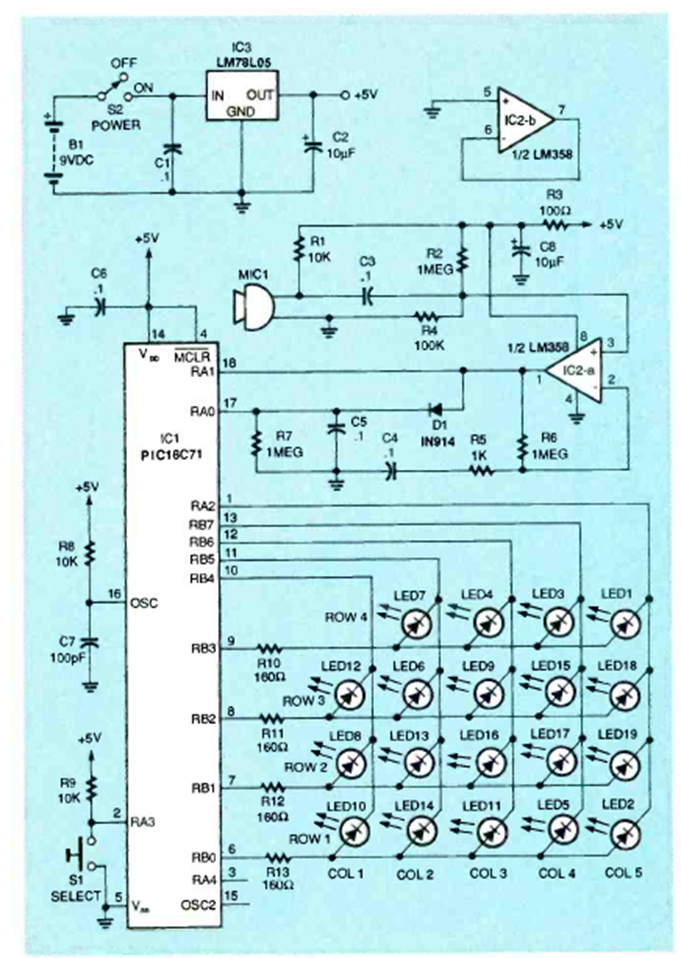

With this name the LED effects circuit presented was found in the Electronics Now magazine of December 1994. The circuit is powered by a 9 V battery.




| Clique na imagem para ampliar |
