Digital Thermometer (CB24564E)

Details
Written by: Newton C. Braga

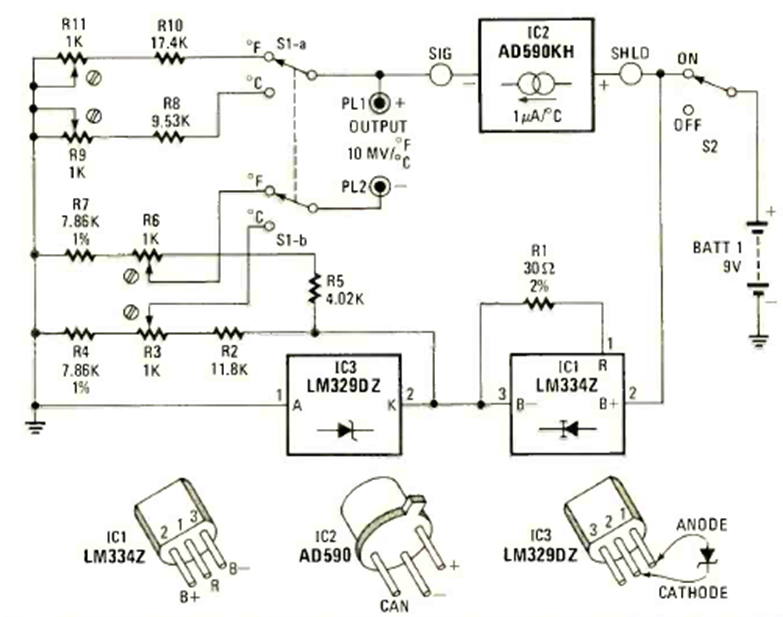

This circuit was found in the July 1978 issue of Radio Electronics magazine. The circuit uses a common digital voltmeter as the indicator. The sensors are integrated circuits of the time.
