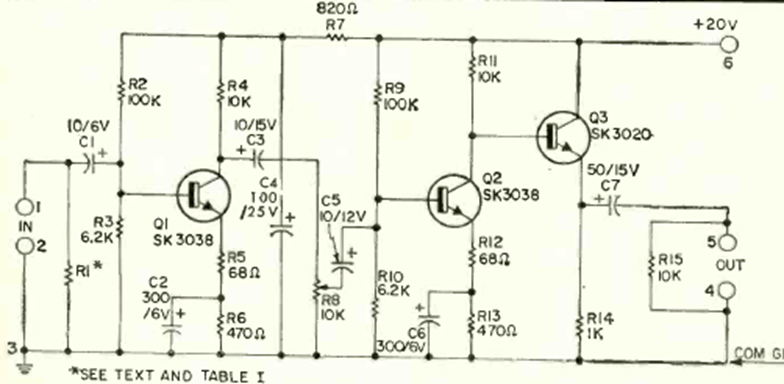

This circuit is from a Radio Electronics from October 1970. The circuit uses transistors from that era and has a low impedance output. The resistance R1 depends on the impedance of the input signal.
| Clique na imagem para ampliar |
Headphone Amplifier (CB24080E)
- Details
- Written by: Newton C. Braga
