Metronome (CB24922E)

Details: Written by: Newton C. Braga

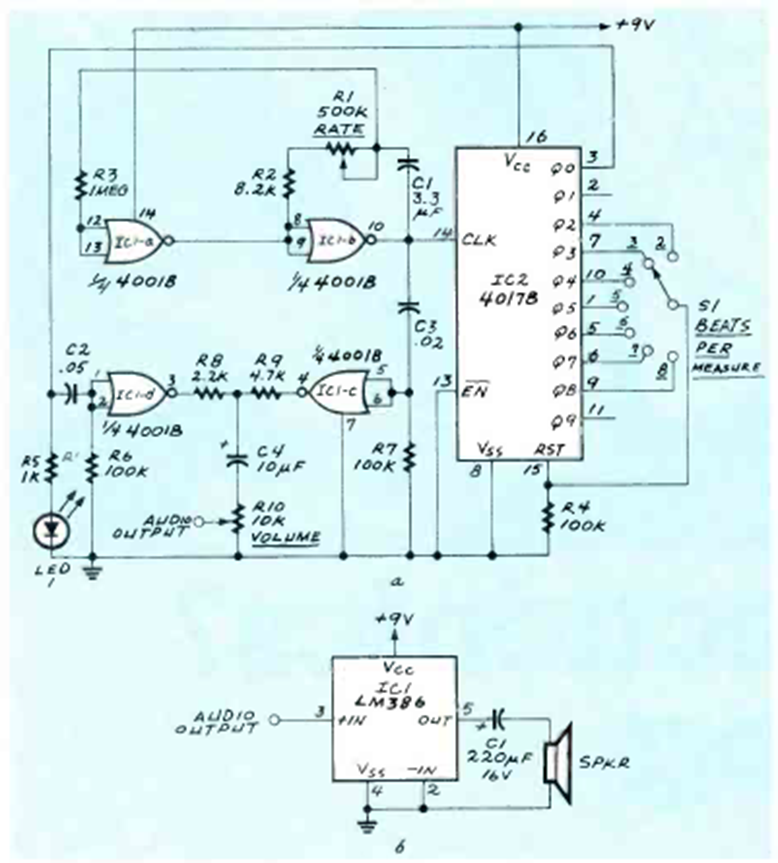

This sophisticated metronome has accented tones for better use. The circuit is from Radio Electronics from December 1985. The amplifier stage is provided.

| Clique na imagem para ampliar |
