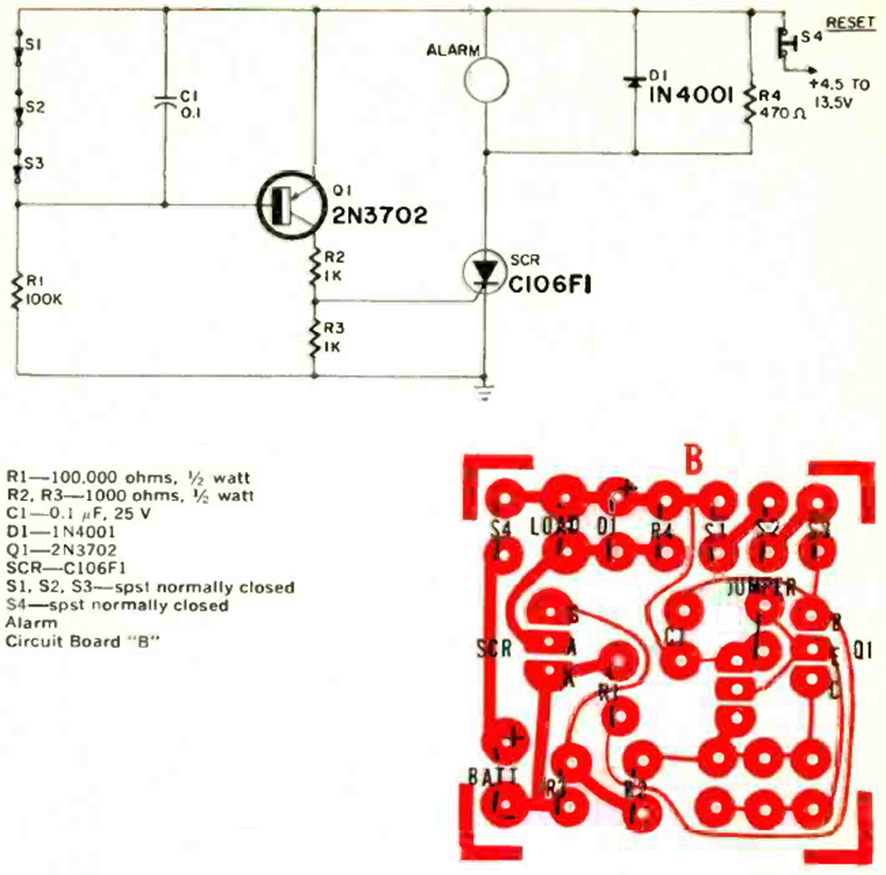

Using a 106 series SCR, this circuit was found in the May 1971 Radio Electronics magazine. The quiescent current is very low and is given by the value of R1.
| Clique na imagem para ampliar |
Very Low Power C106 Alarm (CB24133E)
