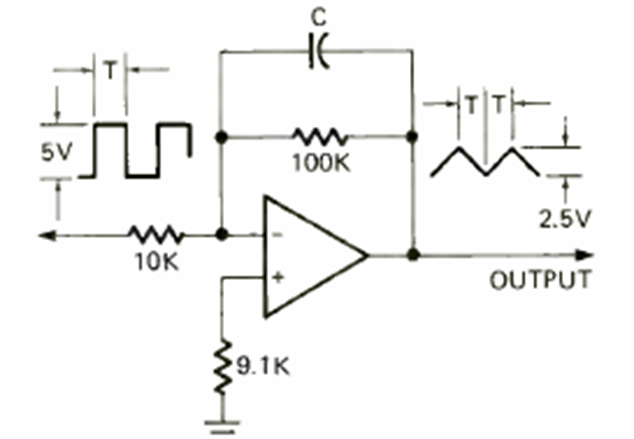

The figure shows how to convert a rectangular signal into a triangular signal using an integrator. The circuit is from a Radio Electronics magazine from June 1972. The operational IC can be of any type and C depends on the frequency.
Rectangular to triangular converter (CB24194S)
- Details
- Written by: Newton C. Braga
