FET Switch (CB6725E)

Details
Written by: Newton C. Braga

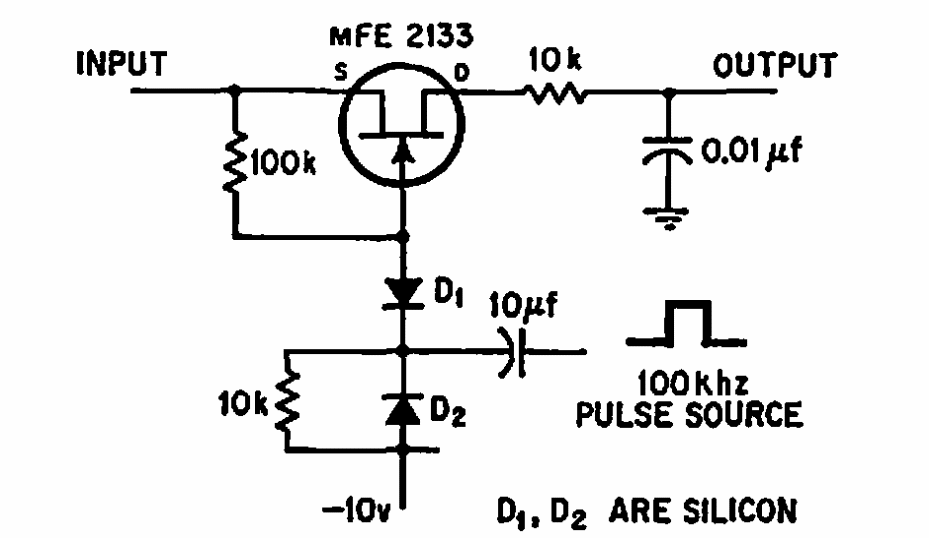

     This switched filter was found in the 1969 documentation. The FET should be current-matched and eventually equipped with a heat sink.
