Modulated Function Generator (CB24255E)

Details
Written by: Newton C. Braga

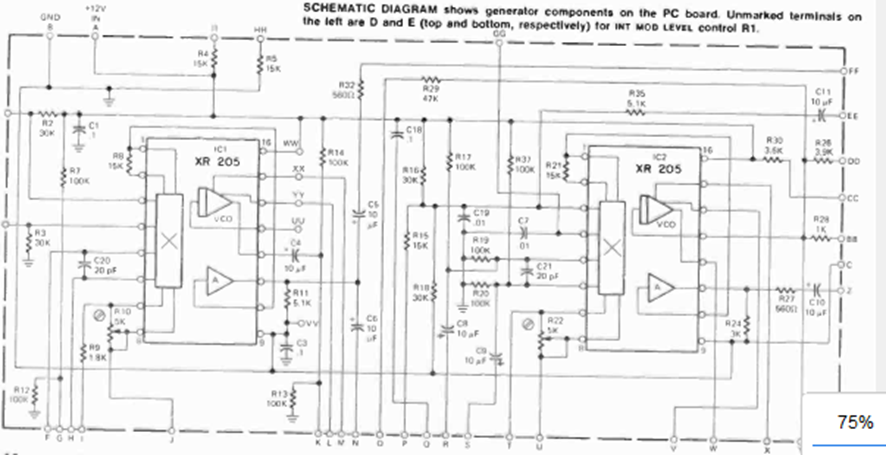

This circuit is from the July 1973 Radio Electronics magazine. The circuit is based on the XR-205, which was popular at the time for this type of application. The circuit generates from 100 KHz to 150 kHz.




| Clique na imagem para ampliar |
